Panoramic double-tempered insulated LOW-E glazing
Cabins · Residence Range
NATOR ONE — Flagship Residence
The largest cabin in the collection — a long-format modular residence with a full-height glazed frontage, contemporary interior and two available layouts.
Overview
About the NATOR ONE
NATOR ONE is the largest cabin in the Timmy Nator Future Living collection and the only product offered in two supplied layouts — a single-bedroom standard plan and a two-bedroom plan within the same 11.4m × 3.4m body.
Its defining feature is the full-height glazed frontage running the length of the living space, paired with a skylight above the central volume. The interior is delivered factory-finished, with integrated joinery, a working kitchen, a complete bathroom and the smart-control systems listed in the supplied specification.
NATOR ONE is also the product shown across the exterior colour collection, so the finish can be reviewed before the specification is confirmed.
- Dimensions
- 11.4m × 3.4m (overall dimensions shown in the supplied plan)
- Floor area
- Per supplied plan
- Weight
- Confirmed on project specification
- Users
- Layout dependent
- Range
- Residence Range
- Model reference
- NATOR ONE
Dimensions, areas, weights and occupancy figures are as listed in the supplied manufacturer documentation. Pricing is confirmed per project.
Floor plans
Two available layouts

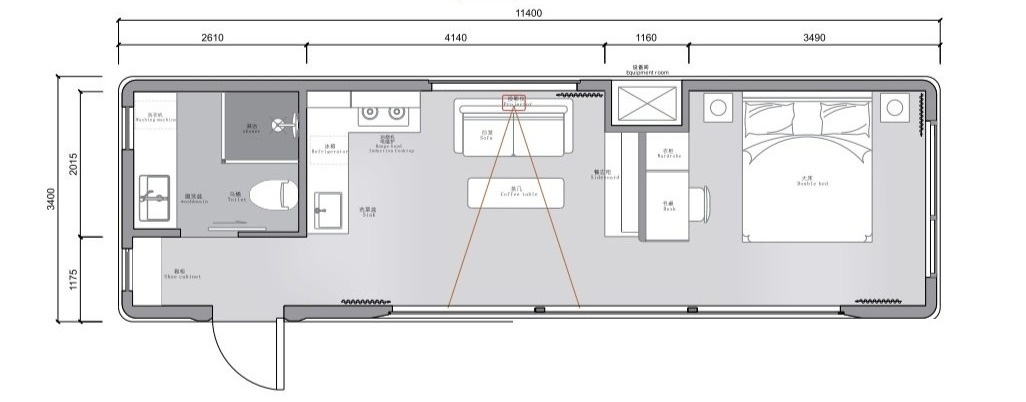

Standard Layout
Overall dimensions shown in the supplied plan: 11.4m × 3.4m.
- · Single bedroom with double bed
- · Open living and dining area
- · Kitchen with integrated appliances
- · Bathroom with shower and washbasin
- · Large glazed frontage to the living space
- · Equipment / services space

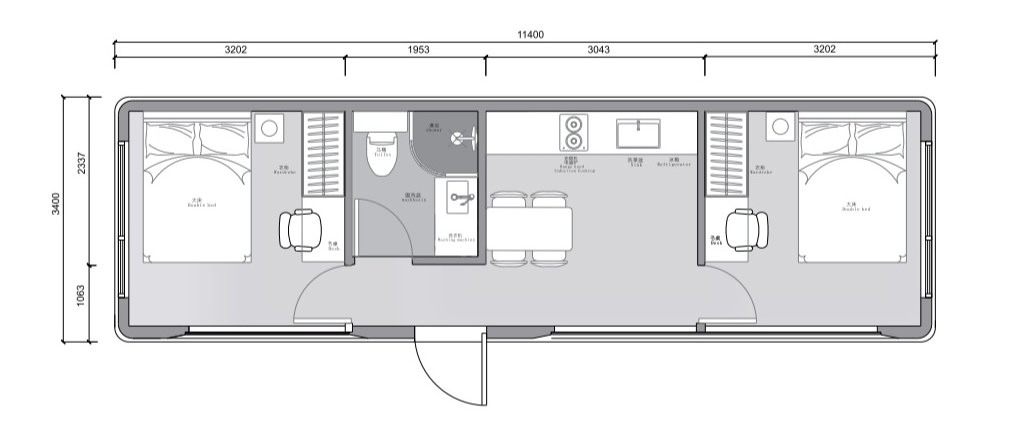

Two-Bedroom Layout
Overall dimensions shown in the supplied plan: 11.4m × 3.4m.
- · Two private bedrooms
- · Central living and dining area
- · Kitchen
- · Bathroom
- · Large glazed frontage
- · Contemporary modular design
Key features
What defines the NATOR ONE
Integrated cabinetry and concealed storage
Ambient and downlight interior lighting
Skylight above the living area
Six exterior colour options
Potential applications for the NATOR ONE
- Holiday accommodation
- Tourism cabins
- Farm stays
- Retreats
- Private studio
Colour collection
Six exterior colours
Lunar White
Exterior colours shown are those presented in the supplied material for this model. Final finishes are confirmed on the project specification.
Interior
Inside the flagship
Interior
Kitchen
Integrated cabinetry, induction cooktop, extraction and stainless sink within a compact working bench.
Interior
Living & skylight
Open living volume with island bench, recessed ceiling detail and an overhead skylight above the central space.
Interior
Bedroom
Double bed against integrated joinery, with curtains and glazing to both sides of the sleeping zone.
Interior
Panoramic glazing
Full-height glazed frontage with thermally broken frames and continuous ambient lighting to the ceiling perimeter.
Technology
Smart systems
Intelligent Voice Control
Whole-house intelligent voice control system.
Smart Control Panel
Integrated access, lighting and intelligent control functionality.
Intelligent Lighting
LED downlights and integrated ambient lighting systems.
Electric Curtains
Motorised curtain system with durable metal track and nylon pulley system.
Automatic Sunshade
Electrically controlled overhead shading.
Climate Control
Wall-mounted heating and cooling air conditioning.
Electric Floor Heating
Model and configuration dependent — confirmed per cabin specification.
Fresh Air System
Model and configuration dependent — confirmed per cabin specification.
Smart Door Access
Intelligent waterproof access-control door locking system.
Entertainment
Sound-system and automatic projection-screen options shown in the supplied material.
Smart features are model and configuration dependent and are confirmed on the final specification for your cabin.
Construction
How the body is built
Structural Frame
Reinforced seismic steel structural system.
Exterior
Fluorocarbon-coated aviation aluminium sheet.
Insulation
High-density polyurethane panel system: 50mm polyurethane panel + 50mm polyurethane foam, per the supplied standard specification.
Glazing
Double-tempered insulated LOW-E glazing. Supplier specification: 6 + 12A + 6 LOW-E glass curtain-wall system.
Windows & Doors
Thermally broken (broken-bridge) door and window system with embedded double-tempered insulated LOW-E glazing and standard insect screens, per supplied specifications.
Interior Walls
Bamboo charcoal fibreboard interior wall finish.
Flooring
Cement-fibre board base with premium waterproof composite timber-look flooring.
Ceiling
Fibreboard / aluminium ceiling system depending on the selected finish.
Balcony
Where included: laminated glass balustrade and 23mm outdoor flooring.
Full specification as supplied in the manufacturer documentation for the range. Items are subject to project-specific review and confirmation.
New Zealand
Compliance & site requirements
New Zealand projects may require site-specific engineering, foundations, transport approvals, resource consent, building consent and/or other regulatory approvals depending on the cabin, proposed use and location. Specifications and configurations are subject to project-specific review and confirmation.
No representation is made that this cabin automatically complies with the New Zealand Building Code, that it is consent-free, or that engineering certification is in place unless supporting documentation has been provided for your specific project.
The range
Other cabin models
Enquire
