Two-level curved shell as shown in the supplied render
Cabins · Cabin Range
NATOR SEVEN — Two-Level Commercial Unit
The largest body in the range at 63m² over two levels, shown in the supplied manufacturer material as source reference DT60.
Overview
About the NATOR SEVEN
NATOR SEVEN is a 63m² body measuring 9m × 3.5m × 6m, listed at 12 tonnes for 2–8 users in the supplied manufacturer material (source reference DT60).

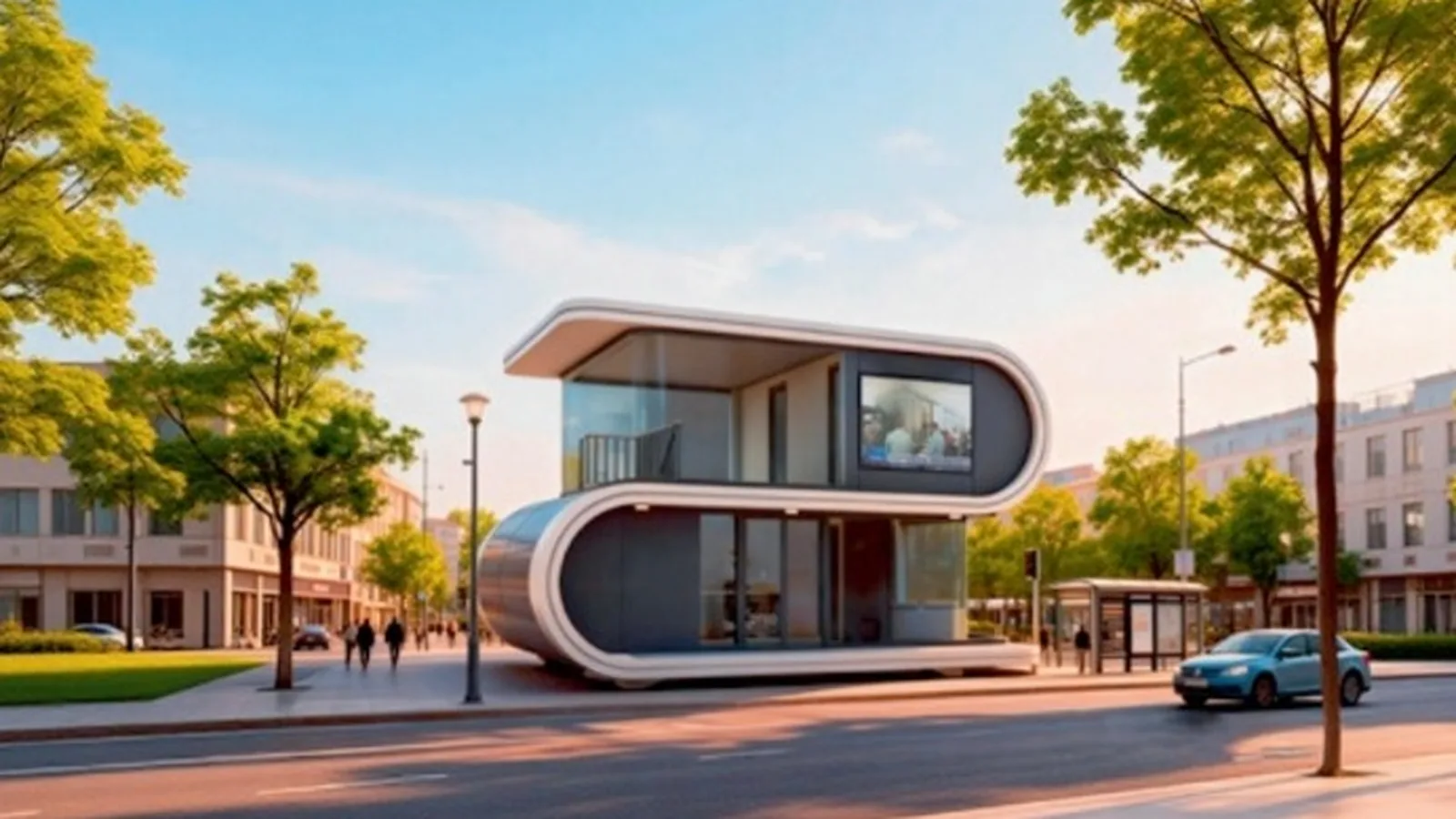

The supplied render shows a curved two-level shell with glazed frontages at both levels, presented in an urban street setting.
All figures are manufacturer-supplied and subject to final project specification and verification. Two-level units typically require site-specific engineering and consenting review in New Zealand.
- Dimensions
- 9m × 3.5m × 6m (manufacturer-supplied)
- Floor area
- 63m² (manufacturer-supplied)
- Weight
- 12 tonnes (manufacturer-supplied)
- Users
- 2–8 (as listed in the supplied material)
- Range
- Cabin Range
- Model reference
- NATOR SEVEN
Dimensions, areas, weights and occupancy figures are as listed in the supplied manufacturer documentation. Pricing is confirmed per project.
Key features
What defines the NATOR SEVEN
Glazed frontages at both levels
Largest listed area in the range at 63m²
Site-specific engineering and consenting review expected
Potential applications for the NATOR SEVEN
- Hospitality
- Commercial space
- Larger accommodation
- Visitor facilities
Technology
Smart systems
Intelligent Voice Control
Whole-house intelligent voice control system.
Smart Control Panel
Integrated access, lighting and intelligent control functionality.
Intelligent Lighting
LED downlights and integrated ambient lighting systems.
Electric Curtains
Motorised curtain system with durable metal track and nylon pulley system.
Automatic Sunshade
Electrically controlled overhead shading.
Climate Control
Wall-mounted heating and cooling air conditioning.
Smart features are model and configuration dependent and are confirmed on the final specification for your cabin.
Construction
How the body is built
Structural Frame
Reinforced seismic steel structural system.
Exterior
Fluorocarbon-coated aviation aluminium sheet.
Insulation
High-density polyurethane panel system: 50mm polyurethane panel + 50mm polyurethane foam, per the supplied standard specification.
Glazing
Double-tempered insulated LOW-E glazing. Supplier specification: 6 + 12A + 6 LOW-E glass curtain-wall system.
Windows & Doors
Thermally broken (broken-bridge) door and window system with embedded double-tempered insulated LOW-E glazing and standard insect screens, per supplied specifications.
Interior Walls
Bamboo charcoal fibreboard interior wall finish.
Flooring
Cement-fibre board base with premium waterproof composite timber-look flooring.
Ceiling
Fibreboard / aluminium ceiling system depending on the selected finish.
Balcony
Where included: laminated glass balustrade and 23mm outdoor flooring.
Full specification as supplied in the manufacturer documentation for the range. Items are subject to project-specific review and confirmation.
New Zealand
Compliance & site requirements
New Zealand projects may require site-specific engineering, foundations, transport approvals, resource consent, building consent and/or other regulatory approvals depending on the cabin, proposed use and location. Specifications and configurations are subject to project-specific review and confirmation.
No representation is made that this cabin automatically complies with the New Zealand Building Code, that it is consent-free, or that engineering certification is in place unless supporting documentation has been provided for your specific project.
